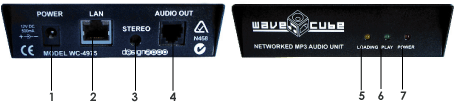

Panel Description

1. Power Jack
Plug the Supplied power adapter (12Vdc, 350mA) into an AC outlet of proper voltage
(specified on adapters label).

2. Network Connection (Ethernet Interface)
Automatic 10 or 100 Mbps link capability. This is your connection point from the WaveCube to your Network, using the supplied Coloured RJ45 Network Cable* Standard Network Cables come in Blue, Yellow, Green & Red.

3. Stereo Socket
3.5mm Stereo Socket. To Monitor current playback of audio, Connect the supplied
earbuds via the 3.5mm Stereo socket.

4. RJ12 Audio Output Socket (Connection to MOH Port)
The WaveCube is simply connected to the MOH port of any telephone system via the RJ12 audio socket on the unit. External Line Isolation unit not required. RJ12 audio plug to telephone plug lead supplied.

5. Amber LED / Light Indicator
This LED/ indicator Light will continually blink when a new message or music file
is being uploaded.

6. Green LED / Light Indicator
The green LED / Light Indicator will be “On” when a message or Music file is
being played.

7. Red LED / Light Indicator
When This LED/ Light Indicator is “On” Power is connected and the WaveCube
is Operational.
